SOITAAB PLASMAtech Plasma PRO
Plasma PRO is the plug & play version of the Plasmatech family. Versatile and economic, it represents the most advantageous solution for many cutting applications. Machine reliability in a compact design with a strong structure. High level performance with next generation electronics and CNC.
AVG Anti collision, Anti UV, Diode Laser. Touch and Go Homico ideal for initial placement on thin and medium thickness sheets.

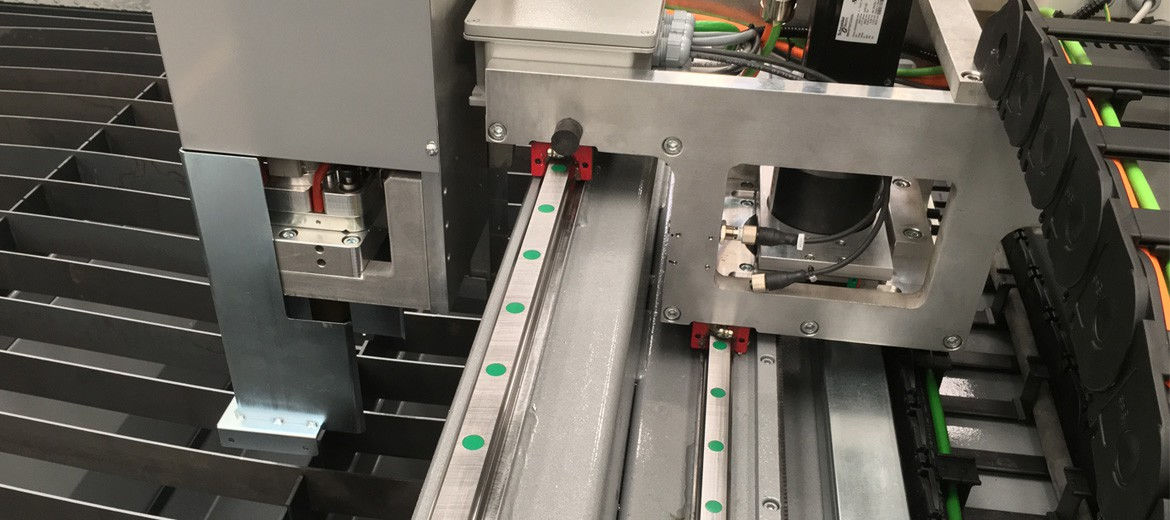

Dual drive brushless motorsWindows for smoke extraction channels
Backspace for power supply accommodation
Clean and compact designn
GENERATORS POWERMAX: PWM 45 - PWM 65 - PWM 85 - PWM 105 - PWM 125
| Working area | 1500 x 3000 mm - (5 x 10 ft) |
| 2000 x 4000 mm - (6.5 x 13 ft) | |
| Plasma power supply | From 45 to 125 A |
| Displacement speed | 20.000 m/min - (60 ft/min) |
| Overall dimensions | 2132 x 4329 mm - (6.5 x 14.1 ft) |
| 2460 x 5325 mm - (8 x 17.5 ft) | |
| CNC, Motor and Drives | 15” Windows Touch, Brushless Digital, powered by Schneider Electric |
| Cutting thickness | Up to 20 mm - (5.08 inch) |
| Marking system | Pen marking |
| Available working tables | Dovn draft |
| Water table |
