Euromac Fx Bend Cell 3100 STANDARD-KR
This large-scale complex, mounted on rails, is specifically designed for the automatic bending of large-format parts up to 3 meters in length, which are extremely difficult to handle manually.
The line of Euromac automated bending centers offers fully integrated solutions combining high-precision electric press brakes, multi-axis robots, and intelligent software. These systems are designed to ensure maximum productivity when processing parts of any size, offering flexible customization for the specific production tasks of each client.
Full integration "from a single source"
Euromac independently develops every element of the structure — from press mechanics and robot integration to control software, guaranteeing perfect compatibility, reliability, and ease of system operation.
Euromac independently develops every element of the structure — from press mechanics and robot integration to control software, guaranteeing perfect compatibility, reliability, and ease of system operation.
Ultra-fast programming
Specialized Fx Cell 3D software allows for offline robot setup in minimal time, significantly reducing equipment downtime when switching to new products.
Specialized Fx Cell 3D software allows for offline robot setup in minimal time, significantly reducing equipment downtime when switching to new products.
Flawless precision and repeatability
The unique "Active Fingers" technology with a self-learning function, combined with precision angle control, guarantees consistent bending quality for every part in a series.
The unique "Active Fingers" technology with a self-learning function, combined with precision angle control, guarantees consistent bending quality for every part in a series.
Maximum operational autonomy
Automatic tool and gripper change systems, along with the option to install 10-pallet vertical warehouses, allow the complex to operate for long periods with virtually no operator involvement.
Automatic tool and gripper change systems, along with the option to install 10-pallet vertical warehouses, allow the complex to operate for long periods with virtually no operator involvement.
Versatile loading and unloading
The modular design offers numerous solutions for workpiece flows — from perforated pre-alignment tables to motorized roller conveyors and box sorting systems.
The modular design offers numerous solutions for workpiece flows — from perforated pre-alignment tables to motorized roller conveyors and box sorting systems.
| technikal data | cell 3100 |
| Max. bending force (kN) | 1000 |
| Bending length (mm) | 3060 |
| Daylight opening | |
| Willa clamping (die holder - to punch holder) (mm) | 520 |
| Y axes stroke (mm) | 250 |
| Y axes speed (mm/sec) | 220 |
| Max. bending speed automatic mode (mm/sec) | 36 |
| Max. bending speed manual mode (mm/sec) | 10 |
| Robot | |
| Max. reach (mm) | 2233 |
| Max. payload with gripper (kg) | 70 |
| Number of axes | 7 |
| Pose repeability (mm) | +-0.06 |
| FX Cell | |
| Loading | |
| Maximum parts dimension 1 stack (mm) | 3000 x 1000 |
| Minimum parts dimension (mm) | 50 x 100 |
| Maximum stack height (mm) | 300 |
| Unloading | |
| Area for gravity unloading (mm) | 1200 x 800 |
| Connected load (kWa) | 6 |
| Approx, weight (kg) | 9500 |

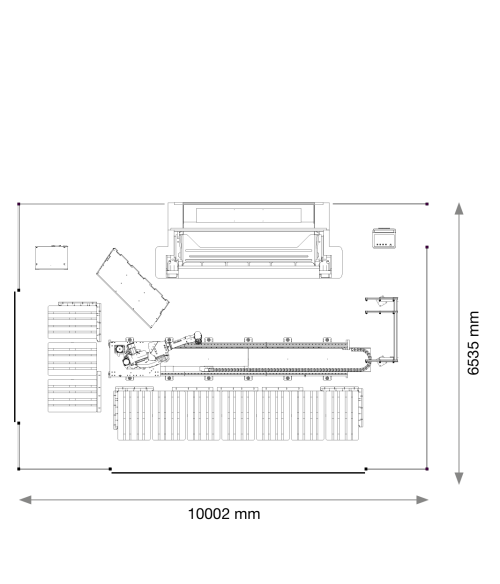

Cell for medium and large sized pieces with a high production capacity. The cell is integrated by:
-
Fx Bend with 6-axes backgauge
-
Robot 20/70/120 Kg on rail
-
Centering table
-
Double part control
-
Loading station for large parts
-
Unloading:
-
Palletization up to 7 Europallets.
-
Automatic belt with unloading on case (optional).
-
-
Turnover system
