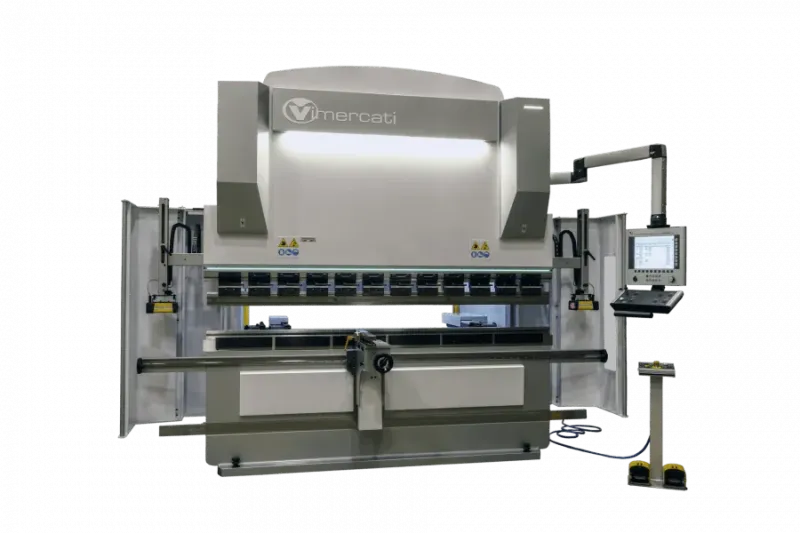

VIMERCATI PHSY 12540

The PHSY 12540 series hydraulic synchronized press is designed for processing metals up to 4 mm thick. It was developed back in 2008, but remains one of the most relevant and popular. The machine is equipped with a Cybelec DNC 60 control unit. It has four controlled axes - Y1-Y2-X-R.

Useful bending depth reaches 1250 mm. The distance between the sidewalls is 1000 mm. The maximum force is 30 tons. The error in positioning accuracy is ±0.01 mm. The traverse works at a speed of 0-10 mm/s.

The PHSY 12540 series press is suitable for any highly automated production plant for:

— elements of roof structures (ridges, valleys, snow retainers);
— drainage systems;
— facade railing details;
— cases, drawers, cabinets.

The Vimercati press is highly productive. Machine power 11 kW. Its height is 3,100 mm, width – 2100 mm, and the length – 4650 mm.



MAX THICKNESS, MM	4
MOTOR POWER, KW	11
WEIGHT, KG	15000
HEIGHT, MM	3100
LENGTH, MM	4650
WIDTH, MM	2100

F.lli Vimercati s.n.c. was founded in 1973 in Brianza, north of Milan, on the initiative of the four Vimercati brothers, who still run the company today. The company specialises in the production of high-quality, reliable press brakes and guillotine shears.

Fratelli Vimercati's production facilities cover 7,500 m², and the company employs more than 50 people – designers, engineers, mechanics and administrative staff. It has a worldwide sales network. All products are 100% made in Italy using the best components and the most advanced production technologies.

The company's philosophy is based on studying users' requirements and adapting solutions to their needs. The company pays great attention to market development and the creation of new technologies.
