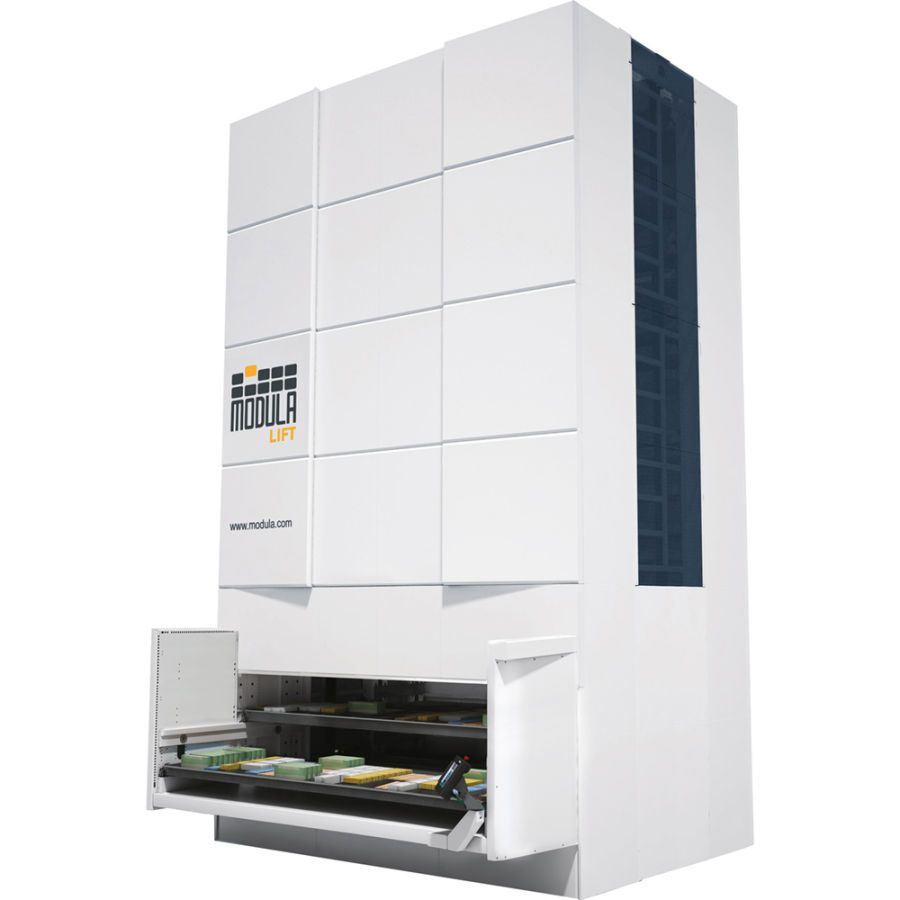

Modula ML - Lift

The Modula Lift system is based on the concept of vertical storage, which makes it possible to save up to 90% of floor space compared to traditional methods. The installation can reach a height of 21 meters, and its total load capacity is up to 90,000 kg. Inside the system, pallets are moved by means of an automatic lift and delivered to the picking window (station), which significantly simplifies access to goods.

• Space saving: Freeing up to 90% of occupied warehouse floor space by using the full available height of the room.
• Increased productivity: Retrieval speed can reach 120 pallets per hour (depending on the configuration).
• Safety and ergonomics: The operator works in safe and ergonomic conditions, as confirmed by TÜV certification.
• Accuracy and control: Integration with Modula WMS software makes it possible to fully control inventory, track the movement of goods, and integrate with the company's ERP systems.
• Configuration flexibility: Various types of picking stations are available (internal, external, single or double). The double-delivery system allows the operator to handle one pallet while the next one is already being prepared by the lift.
• Protection of goods: Materials are stored in a clean and protected environment, reducing the risk of damage or theft.
• Energy efficiency: Minimal energy consumption during operation.

The Modula Lift system is versatile and suitable for storing virtually any type of goods and spare parts of various sizes, weights, and volumes.
What can be stored:

• Spare parts and tools (drills, mechanical tools).
• Small parts, fasteners, and fittings.
• Finished products and semi-finished products.
• Pharmaceuticals, cosmetics, and consumables.
• Electronics, coils, and electrical components.
• Bottled liquids, labels, boxes, and much more.

Thanks to their flexibility, Modula systems are used in a wide variety of sectors:

• Industry: Automotive, metallurgy, mechanical engineering, aerospace industry.
• Medicine: Chemical, pharmaceutical, and biomedical industries.
• Retail: Supermarkets, logistics centers, packaging, and distribution of consumer goods.
• Specialized sectors: Defense industry, energy, furniture, ceramics, and jewelry production.

The system is also ideally suited for integration with other technologies, such as anthropomorphic robots, conveyors, and Put-To-Light systems, creating fully automated work cycles.

Modula ML Series (System Width 4517 mm)

Model	Tray Width (mm)	Tray Depth (mm)	Wall Height (mm)	Payload (kg)	Footprint (int./ext.), mm
ML25	4100	654	70 / 120	250	4517 x 2556 / 3246
ML25D	4100	857	70 / 120	250	4517 x 3165 / 4058
ML25DD	4060	1257	70 / 120	250	4517 x 4365 / 5658
ML50	4100	654	120	500	4517 x 2556 / 3246
ML50D	4100	857	120	500	4517 x 3165 / 4058
ML50DD	4060	1257	120	500	4517 x 4365 / 5658
ML75	4100	654	120	750	4517 x 2556 / 3246
ML75D	4100	857	120	750	4517 x 3165 / 4058
ML75DD	4060	1257	120	750	4517 x 4365 / 5658
ML1000	4060	654	145	990	4517 x 2556 / 3246
ML1000D	4060	857	145	990	4517 x 3165 / 4058
ML1000DD	4060	1257	145	990	4517 x 4365 / 5658
General features	Height: 3.3 – 21 m	Tray pitch: 25 mm	Speed: 120 trays/h	Total payload: 35,000 – 90,000 kg

Modula is a visionary company, with the digitalization of processes as one of its core strengths. Over the years, it has opted for 100% Modula production according to a robust strategy of automation of production lines and insourcing of manufacturing and process know-how. This has made the company stronger in terms of product quality, market competitiveness, and process knowledge.

Modula has chosen to focus on the vertical production of a single type of product and has always dedicated significant resources to research and development. Consequently, it has developed a wide range of models and configurations at its warehouses. Foresight in investment has resulted in the dedication of over €150 million to state-of-the-art production facilities in Italy, the United States, and China.

---

Production Process

Everything happens automatically. Starting with the cutting of panels directly from rolls of sheet steel, production moves swiftly through to finished components. The flow of single parts, kits, or batches depends on specific orders. Production is managed just-in-time and monitored step-by-step by the proprietary MPS (Modula Production System) software.

This software manages requirements linked to sales orders and provides full control over the progress of each order via an integrated barcode reader system. MPS communicates with MRP and ERP systems for the automatic scheduling of work requests. This interconnection via robots and software allows for reduced costs, increased productivity, and real-time control.

---

Why Modula?

1. 30+ years of experience in the development of automatic storage solutions.

2. Work completed for over 20,000 clients and major brands across various sectors.

3. Belief in the vertical project since the ’80s, with constant product improvement.

4. Profound software knowledge, enabling integrated and customized solutions.

5. Collaboration with numerous partners for integrations: from anthropomorphic robots to AMRs, AGVs, and conveyors.
